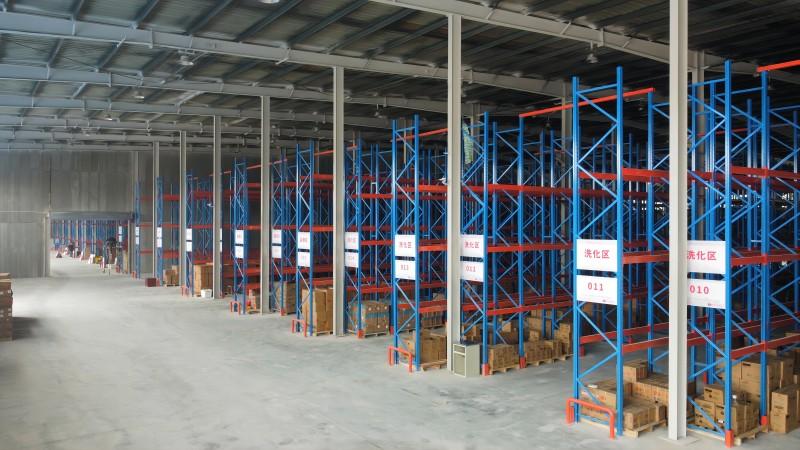

Heavy duty pallet racks

Heavy duty pallet racking is common storage equipment in the field of heavy-duty warehousing. It has become the first choice for many large warehouses due to its excellent carrying capacity, high space utilization, stable structure and character of easy for management.

The height of this racking can reach 16 meters, and the load-bearing capacity of each tier is usually 800kg-3000kg, which can meet most of the storage needs.

It has a simple structure that the overall structure is assembled from uprights and cross beams. One set of upright frame is made up of uprights, horizontal braces, and diagonal braces connected by bolts, and are fixed with safety pins. No welding is required during the installation process.

Goods are usually placed on pallets, which are then transported by forklifts to be placed on beams. Pallets are usually made of wood or metal.

Racking for normal temperature warehouse are made of Q235B steel; in low-temperature cold storage, Q355 steel.

Drive-in racking

This type of storage racks are commonly used in large and medium-sized cold warehouses. Drive-in racks eliminate the passages between rows of racks, put racking together, and have a corridor-type structure with continuous storage space, which can make full use of storage space.

Drive-in racks are also called drive-through racks or corridor racks. They are suitable for storing single type of goods in large quantities. Compared with pallet racks, its utilization rate of warehouse space can be increased by more than 30%. The forklift enters the interior of the shelving system to get goods. Picking up goods from one side no more than 8 pallets, and the wall area is generally within depth of 5 pallets. Each pallet can bear 500-2000KG products.

Pallets are stored on support rails one after another. Goods are took out from the same side of racking, depositing first and withdrawing last; depositing first and withdrawing last.

Compared with beam-type racks, drive-in racking should not be too high, generally within 10m, and a tightening device is required.

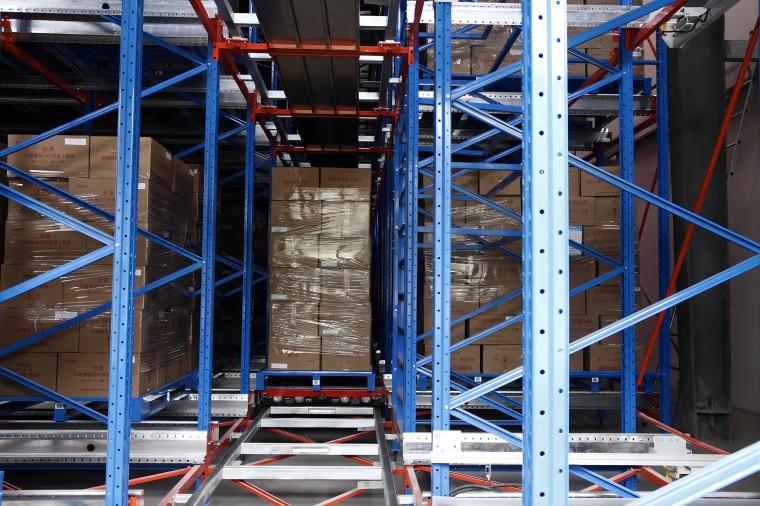

Four-way shuttle racking

Radio shuttle racking integrates intelligent control, automatic transportation, and minimal human participation. It is a product of combination of traditional racks and modern control equipment.

The four-way radio shuttle car can automatically pick up goods, automatically change lanes and floors, and transport goods to any direction according to needs. At the same time, the four-way shuttle is equipped with a power monitoring device and can realize automatic charging.

This type of racking can be used in densely stored raw material warehouses, semi-finished product warehouses, and finished product warehouses.

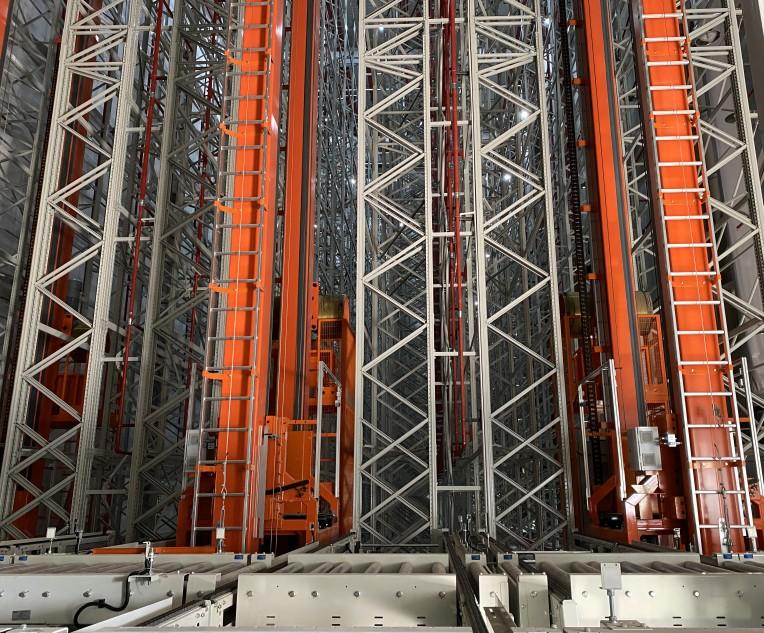

ASRS Racking System

Height of Automated Storage and Retrieval System is generally between 10-30M, each storey can carry more than 5 tons, and its load-bearing capacity is good.

ASRS Racking System make full use of vertical space of the warehouse, and its storage capacity per unit area is several times that of ordinary single-storey warehouses. The stacker can reach any cargo location for storage operations.

The vertical warehouse has centralized cargo locations, easy for control and management. While realizing automatic operations, it can also share information, provide online query, and connect with the company's existing ERP, MES and other systems.

Because intervention of workers is minimal, intelligent three-dimensional warehouse racking can greatly save labor costs and improve warehousing efficiency.

Automated warehouses have strong batch goods processing capabilities and are more suitable for the storage of large quantities and small varieties of goods.

This system combines comprehensive performance of software and hardware. Through the operation of high-level racking, stackers, cargo conveying lines, and integrated computer control software, we can achieve automated and precise storage of batches of goods, reduce manpower operations, and make storage more dense, more accurate and faster.

Advantages of ASRS Racking:

1. It can make full use of the vertical space of the warehouse. According to the number of racks, the storage capacity per unit area is several times that of an ordinary single-storey warehouse, significantly reducing cost of warehousing.

2. All operations are mechanized and automated. On the one hand, it can greatly save manpower and reduce labor costs. On the other hand, it can greatly improve operating efficiency and enhance the overall competitiveness and image of the enterprise.

3. Concentrated cargo locations facilitate control and management, especially, the usage of computer for management, which can realize automatic control of operations.
